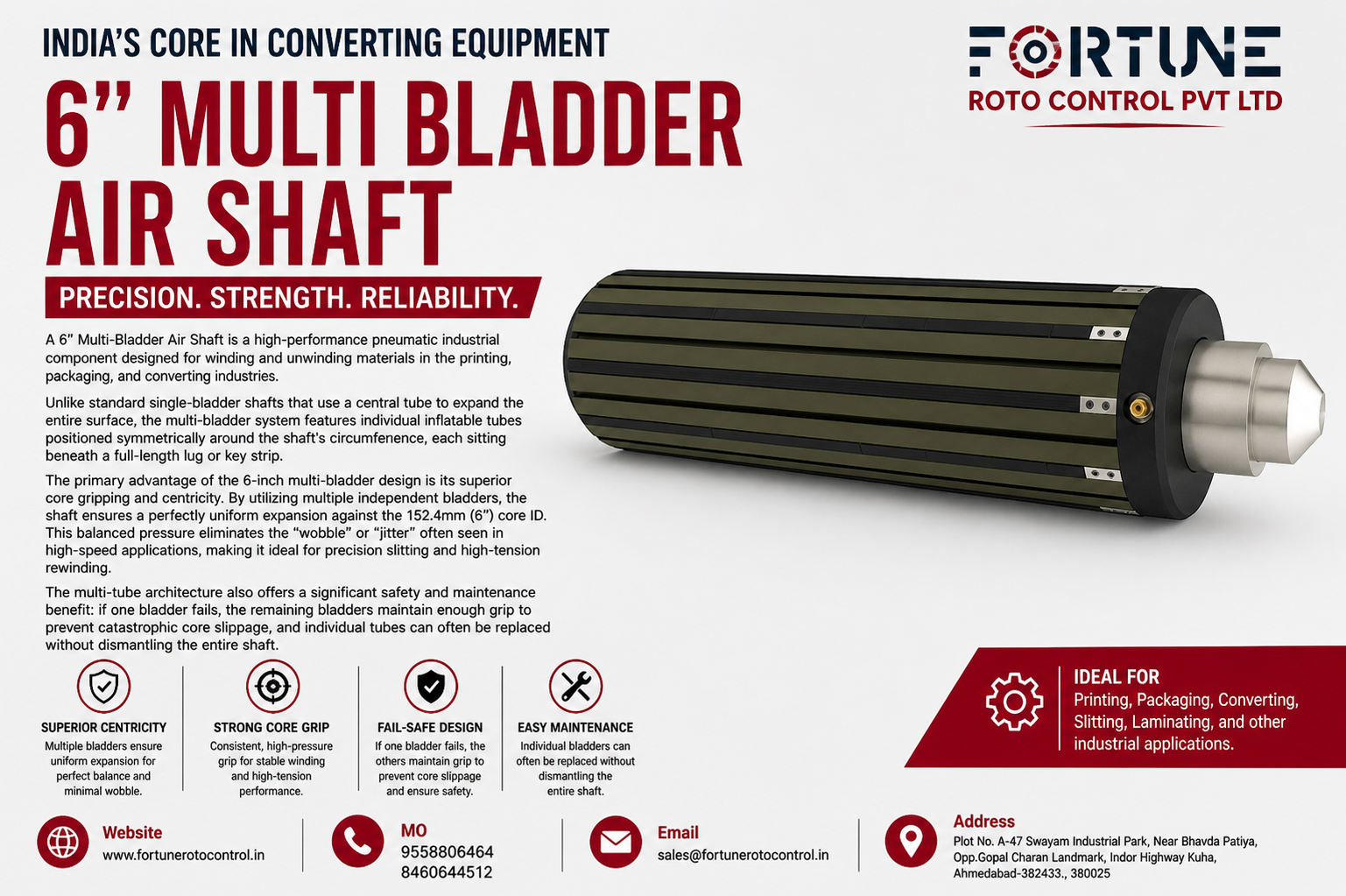

6' Multi Bladder Air Shaft: Reliable Roll Handling for High-Speed Converting Applications

What is a 6' Multi Bladder Air Shaft?

A 6-inch Multi Bladder Air Shaft is a pneumatic expanding shaft specifically designed to hold rolls with a 6-inch inner core diameter. Equipped with multiple inflatable bladders, the shaft expands evenly inside the core when supplied with compressed air, providing a secure and balanced grip for winding, unwinding, slitting, laminating, and printing operations.

Its multi-bladder design ensures uniform expansion, making it ideal for demanding industrial applications where high torque transmission and precise roll handling are essential.

How Does a 6' Multi Bladder Air Shaft Work?

The shaft contains several high-quality rubber bladders positioned evenly around its circumference. When compressed air is introduced through the air valve, the bladders inflate simultaneously, causing the gripping lugs or strips to expand uniformly against the inside of the 6-inch core.

Once the production cycle is complete, the air is released, the bladders deflate, and the roll can be removed quickly and safely. This mechanism enables faster roll changes while maintaining consistent gripping performance.

Key Features

• Designed for standard 6-inch (152.4 mm) core sizes
•

• Multiple inflatable bladders for uniform expansion
•

• Excellent torque transmission with minimal slippage
•

• Heavy-duty construction for continuous industrial use
•

• Quick inflation and deflation for faster roll changes
•

• Low maintenance with easily replaceable bladders
•

• Precision-machined body for smooth and reliable operation
•

• Compatible with high-speed winding and unwinding systems

Applications

The 6' Multi Bladder Air Shaft is widely used in:

• Paper converting machines
•

• Flexible packaging production
•

• Plastic film manufacturing
•

• Slitting and rewinding machines
•

• Printing and coating equipment
•

• Laminating machines
•

• Aluminum foil processing
•

• Textile and nonwoven industries
•

• Label and adhesive tape manufacturing

Advantages of a 6' Multi Bladder Air Shaft

Superior Gripping Performance

The multi-bladder mechanism distributes gripping pressure evenly throughout the core, reducing slippage and ensuring stable roll rotation even at high speeds.

Faster Roll Changeovers

Quick pneumatic expansion and release minimize machine downtime, improving production efficiency.

Reduced Core Damage

Uniform pressure prevents localized stress on the core, extending core life and reducing material waste.

High Torque Capacity

Engineered to transmit high levels of torque, the shaft delivers reliable performance during demanding winding and unwinding operations.

Long Service Life

Manufactured using premium-grade steel, durable rubber bladders, and precision-engineered components, the shaft offers dependable performance with minimal maintenance.

Why Choose Fortune Roto Control?

At Fortune Roto Control, we manufacture high-quality 6' Multi Bladder Air Shafts that deliver exceptional reliability, precision, and durability. Every shaft is produced using advanced manufacturing processes and undergoes strict quality inspections to ensure consistent performance in industrial environments.

We also provide customized solutions tailored to your:

• Shaft length
•

• Journal dimensions
•

• Machine specifications
•

• Load capacity
•

• Operating speed
•

• Special application requirements

Our commitment to quality ensures that every air shaft meets the highest standards for safety, efficiency, and long-term performance.

Maintenance Tips

To maximize the lifespan of your 6' Multi Bladder Air Shaft:

• Use clean and dry compressed air.
•

• Avoid overinflating beyond the recommended pressure.
•

• Inspect rubber bladders regularly for wear.
•

• Keep the shaft clean and free from dust and debris.
•

• Lubricate moving components as recommended.
•

• Replace worn bladders promptly to maintain optimal performance.

Conclusion

A 6' Multi Bladder Air Shaft is an excellent solution for manufacturers seeking secure roll gripping, fast changeovers, and reliable performance in high-speed converting operations. Its uniform expansion, high torque capacity, and durable construction make it an ideal choice for paper, film, foil, textile, and packaging industries.

If you're looking for a precision-engineered air shaft that enhances productivity and reduces downtime, Fortune Roto Control offers dependable solutions designed to meet your exact operational requirements.
