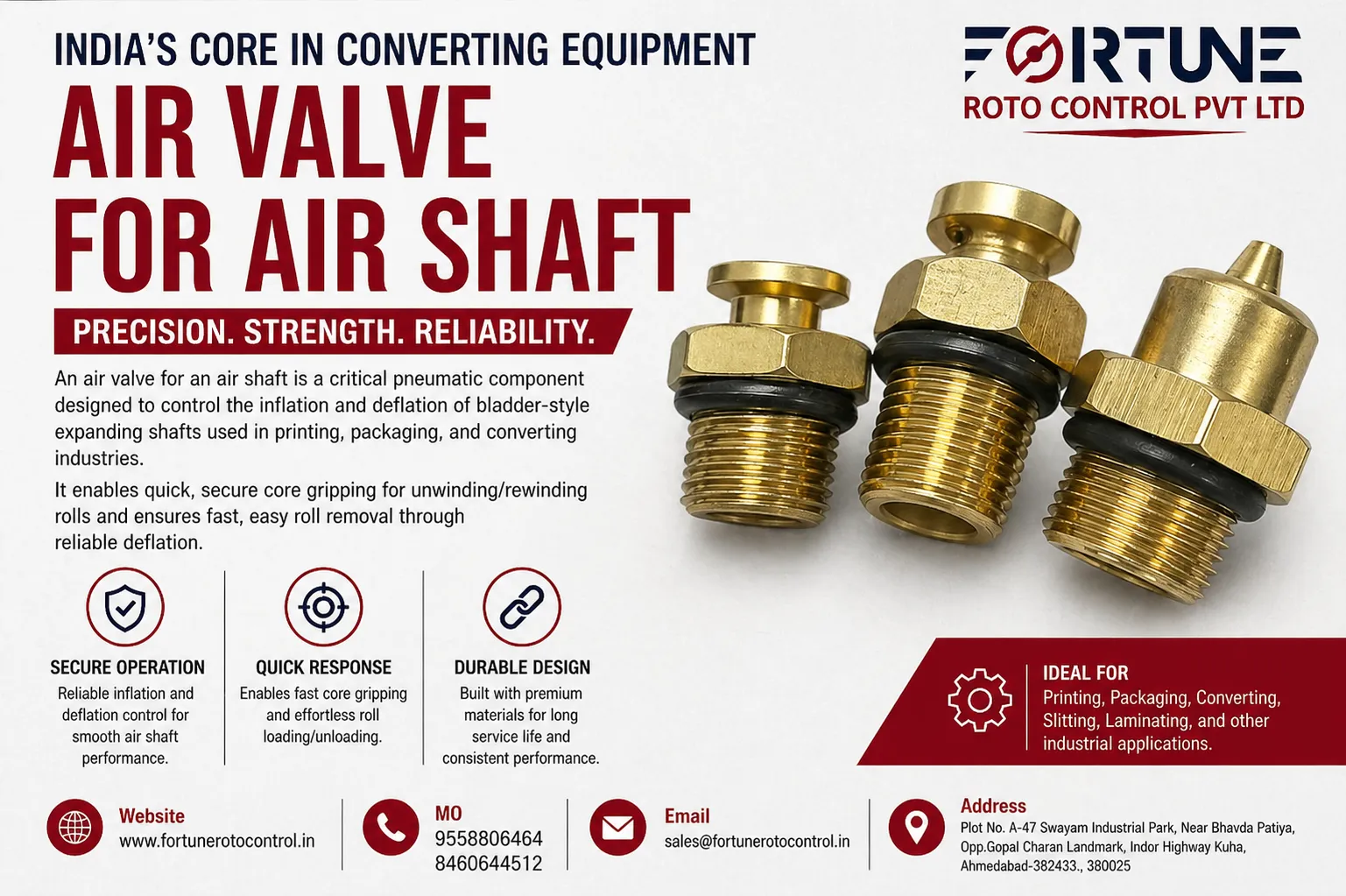

An air valve for an air shaft is the critical component responsible for controlling the inflation and deflation of the internal pneumatic bladders or tubes. Acting as the gatekeeper for the pressurized air, this valve allows operators to quickly secure or release material cores during roll changeovers. Typically recessed into the end of the shaft journal or the side of the shaft body to protect it from impact damage, these valves are designed to withstand high operational pressures and frequent use in harsh industrial environments.
The functionality of an air shaft valve is based on a high-flow, spring-loaded check valve mechanism, similar to a heavy-duty Schrader valve but built to industrial standards. When an operator connects an air inflation gun to the valve, the internal pin is depressed, allowing compressed air to rapidly fill the shaft's bladders and expand the gripping lugs or leaves outward against the core. Once the air gun is removed, the internal spring instantly forces the valve closed, creating an airtight seal that maintains constant pressure and prevents core slippage during high-speed winding or unwinding operations.
For roll removal, the valve allows for near-instantaneous deflation of the system. Operators simply press the central pin of the valve with a deflation tool, which vents the trapped air into the atmosphere, causing the bladders to collapse and the gripping elements to retract. Most modern air shaft valves are constructed from durable brass, stainless steel, or high-strength aluminum to resist corrosion from ambient humidity and prevent thread stripping. Their reliable performance ensures smooth, repeatable machine cycles, making them a small but foundational element of efficient web-handling workflows.
The functionality of an air shaft valve is based on a high-flow, spring-loaded check valve mechanism, similar to a heavy-duty Schrader valve but built to industrial standards. When an operator connects an air inflation gun to the valve, the internal pin is depressed, allowing compressed air to rapidly fill the shaft's bladders and expand the gripping lugs or leaves outward against the core. Once the air gun is removed, the internal spring instantly forces the valve closed, creating an airtight seal that maintains constant pressure and prevents core slippage during high-speed winding or unwinding operations.
For roll removal, the valve allows for near-instantaneous deflation of the system. Operators simply press the central pin of the valve with a deflation tool, which vents the trapped air into the atmosphere, causing the bladders to collapse and the gripping elements to retract. Most modern air shaft valves are constructed from durable brass, stainless steel, or high-strength aluminum to resist corrosion from ambient humidity and prevent thread stripping. Their reliable performance ensures smooth, repeatable machine cycles, making them a small but foundational element of efficient web-handling workflows.
