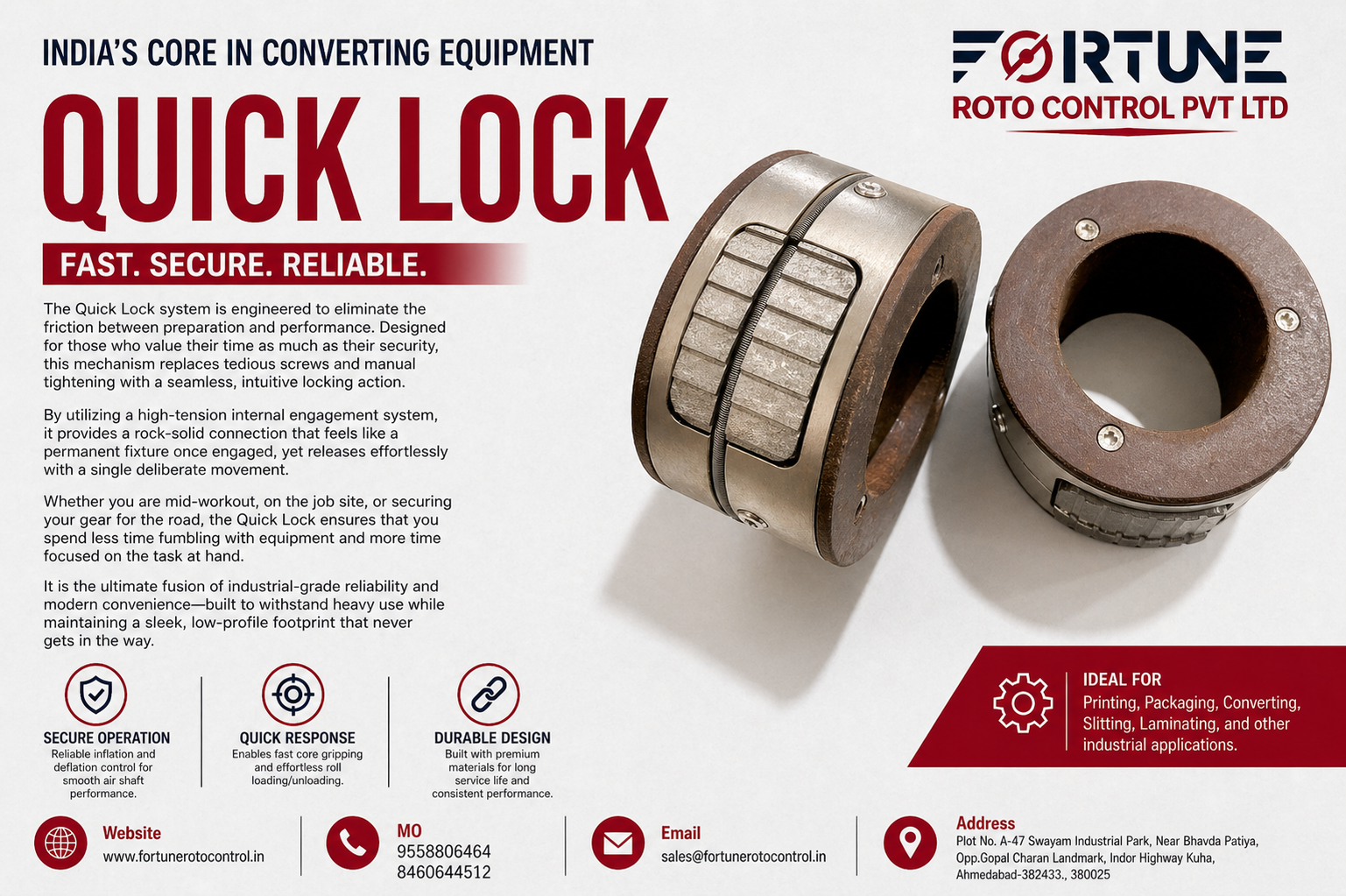

A quick lock (often referred to as a quick-lock core chuck or fast-locking adapter) is a mechanical device designed to instantly secure material cores onto a shaft without the use of compressed air or specialized tools. Commonly used in light-to-medium duty winding and unwinding applications, these components eliminate the need for pneumatic lines, inflation guns, and complex internal bladder systems. Instead, they rely on the natural rotation of the machinery or a simple manual twist to create an immediate, slip-free grip inside cardboard, plastic, or metal cores.
The internal mechanism of a quick lock typically utilizes a series of spring-loaded rollers, cams, or unidirectional bi-directional jaws. When a core is slid over the quick lock device, the rollers sit flush with the surface for effortless loading. However, as soon as the machine shaft begins to rotate and encounters resistance from the material web, the internal cams force the rollers or jaws to ride up an internal ramp. This action expands the gripping elements outward, wedging them tightly against the inner diameter of the core. The greater the winding torque applied by the machine, the tighter the quick lock grips the core.
Implementing quick lock systems brings massive advantages in terms of maintenance simplicity, cost-efficiency, and operational speed. Because they have no rubber bladders, air valves, or pneumatic seals, they are virtually maintenance-free and immune to the costly air leaks that plague traditional expanding shafts. Operators can slide cores on and off in a single fluid motion, drastically reducing roll changeover times and boosting overall daily output. This blend of mechanical simplicity and rapid handling makes quick locks a highly popular choice for label printing, slitting, and narrow-web converting operations.
