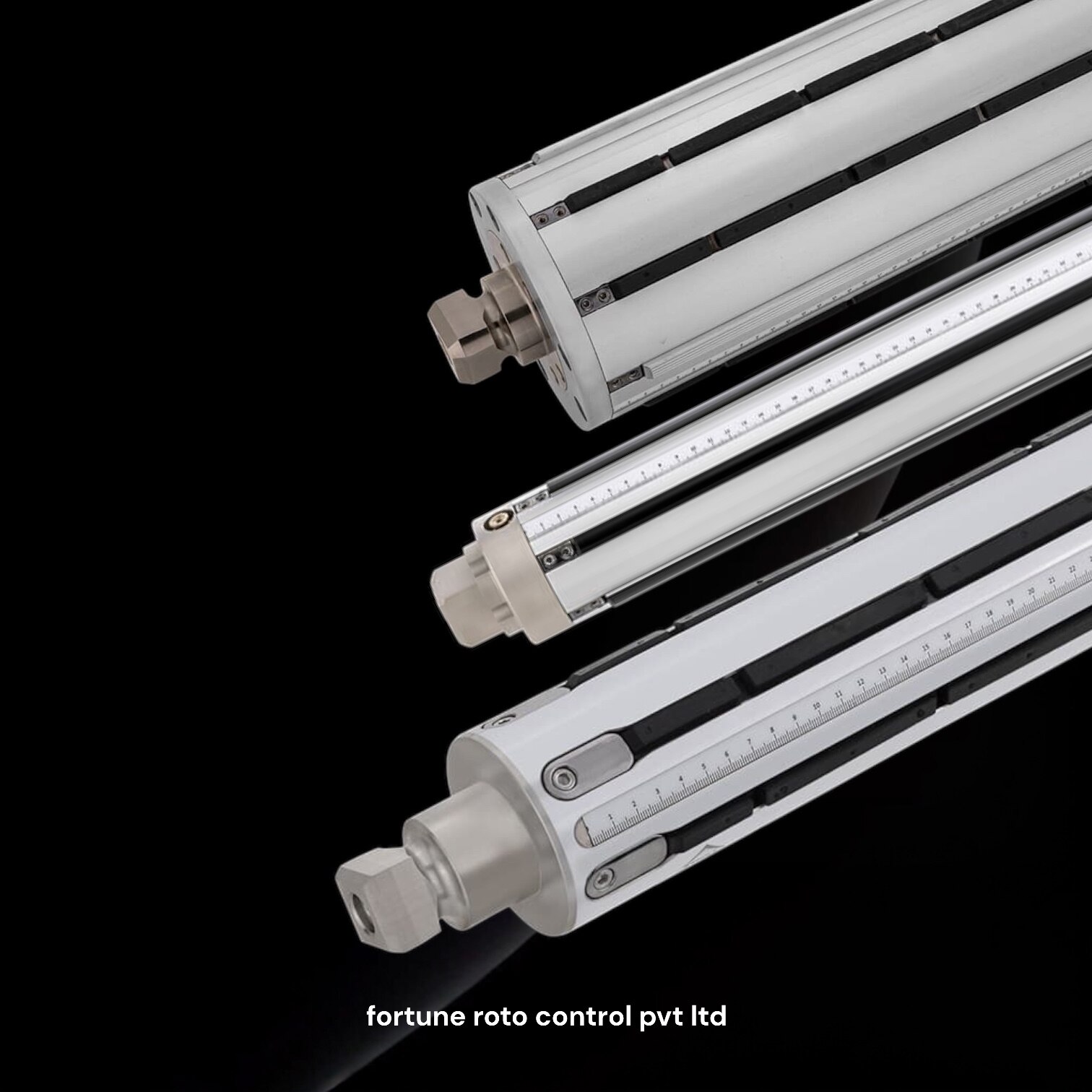

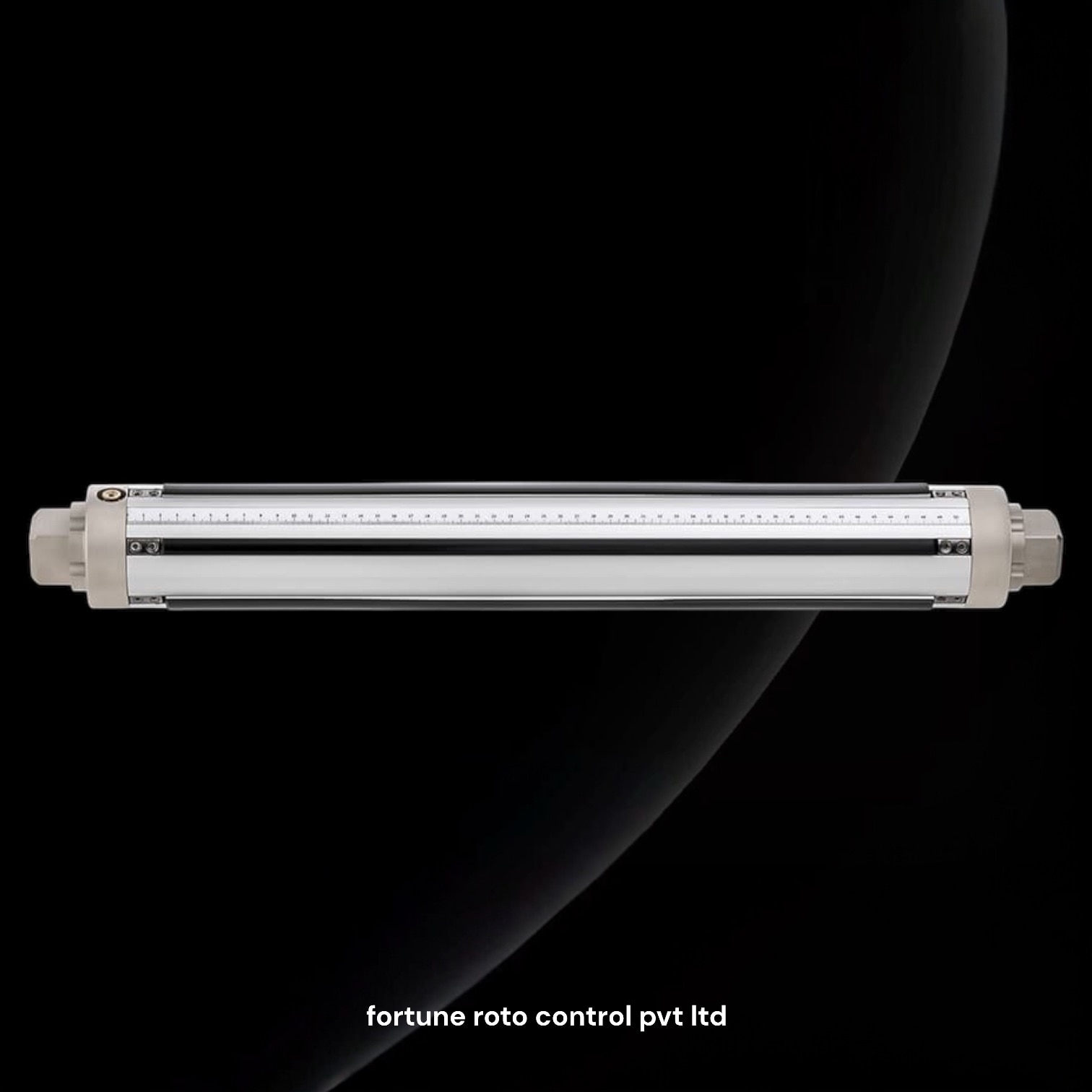

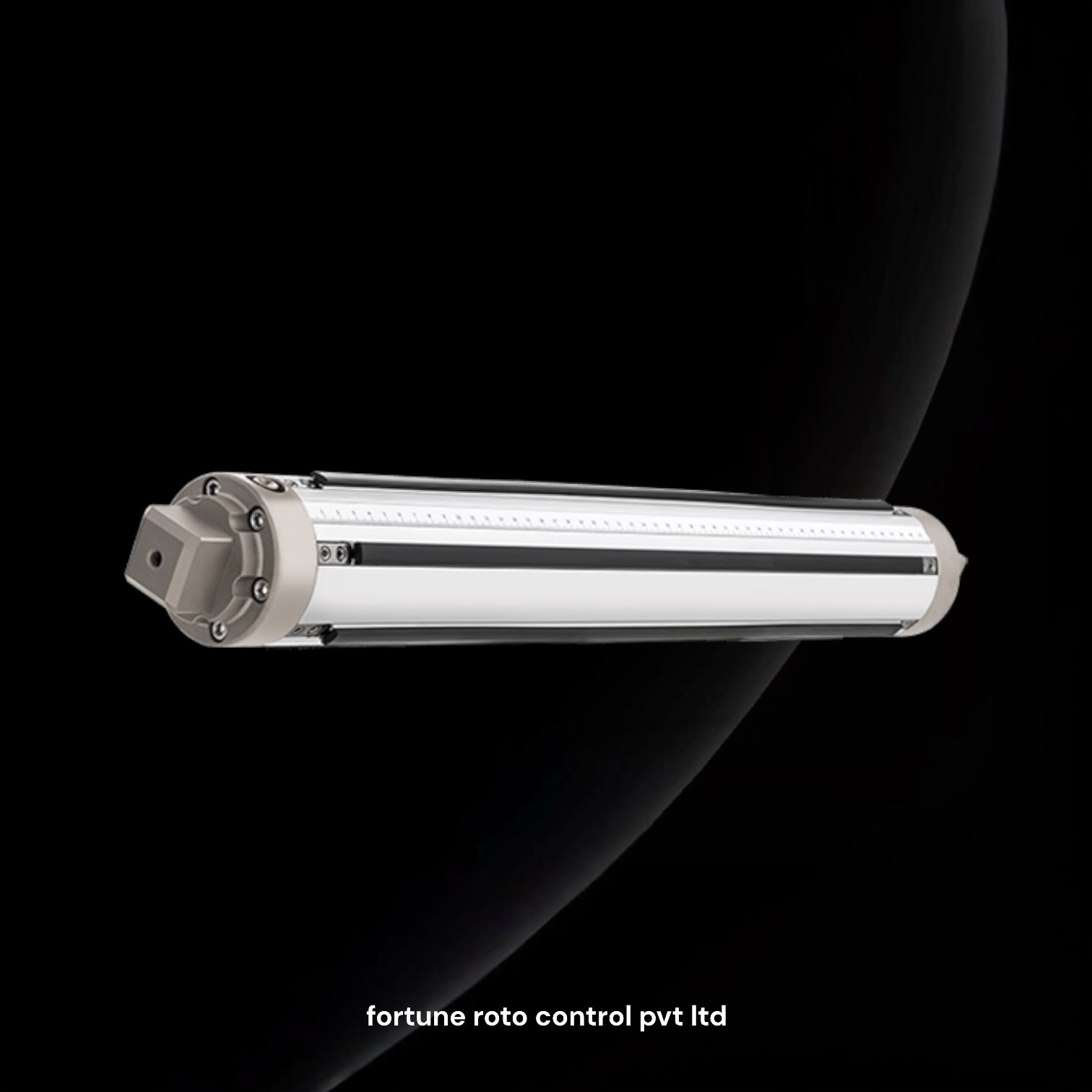

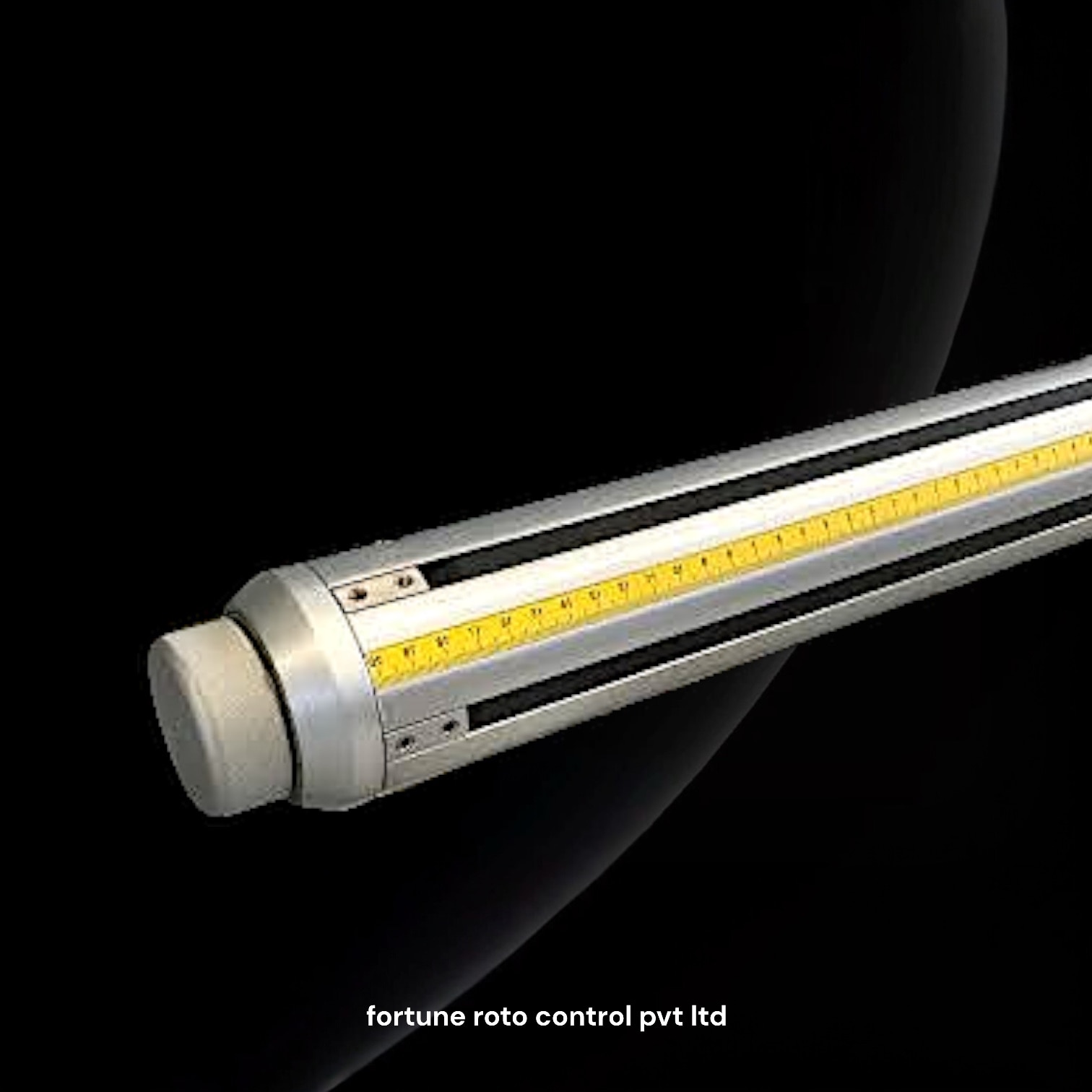

MULTI BLADDER AIR EXPANDING SHAFT

Multi-bladder Aluminium Shaft

Operator-friendly due to their lightweight aluminium construction,

these shafts can be used for light to medium weight winding operations.

Multiple rolls can be wound simultaneously on the same shaft.

Multi-bladder Steel Shaft

Due to their steel construction, these shafts can be used for heavy-duty

winding operations. Multiple rolls can be wound simultaneously on the

same shaft.

• Perfect for roll unwinding and rewinding process

• Body material aluminium with hard Anodized and

Steel (NITRIDING STEEL|41CRALMO7 ) with Hardchrome re grinding or Electroless nickel platting

• Fortune Centrimax system ensures high precision reel centering to guarantee perfectly concentric unwinding and rewinding. Perfect concentricity allows faster machine speeds and reduces stress on the web material.

INSIDE CORE ID

1”

1.5”

2”

Or

50mm

70

Mm

3”

4”

5”

6”

Expanding

Shaft (mm)

24.5

37.5

48.5

68-69

74.5/

75.5

99-100

125

148-152

LUGS (Bladders)

Number

2

3

3

6/5

6/5

6

6

10

Profile material

Steel

Steel

Steel

Steel/

Alu

Alu/

Steel

Alu/

Steel

Alu/

Steel

Alu/steel

144mm

140-142

6

Aluminium

( Custom-made solutions possible )
